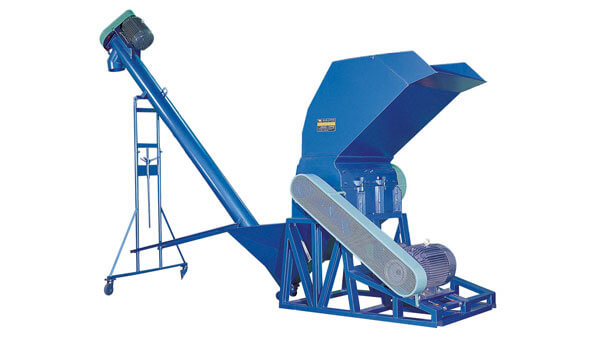

MD-CW20/CW30/CW38 Hammer Mill
PVC Pipe Hammer Mill
PVC Pipe Hammer Mill
| Type | MD-CW20 | MD-CW30 |
|---|---|---|
| Motor (HP) | 30 HP | 40 HP |
| Into Size (mm) | 500 x 415 mm | 750 x 415 mm |
| Rotary Cutter | 24 pcs | 42 pcs |
| N.W. (kgs) | 1500 kgs | 1800 kgs |
| L x W x H (mm) | 1700 x 1200 x 1700 mm | 1700 x 1400 x 1700 mm |
| Rotary Diameter(mm) | 540 mm | 540 mm |
| Capacity | 600-1000 pcs/hour | 800-1500 pcs/hour |
| Type | MD-CW38 |
|---|---|
| Motor (HP) | 50 HP |
| Into Size (mm) | 950 x 415 mm |
| Rotary Cutter | 48 pcs |
| N.W. (kgs) | 2330 kgs |
| L x W x H (mm) | 1700 x 1600 x 1700 mm |
| Rotary Diameter(mm) | 540 mm |
| Capacity | 1000-2000 pcs/hour |
